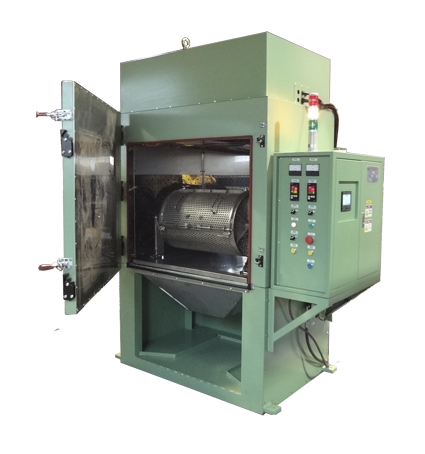

Washer large and small type of seal iron shell.
Features：
-
Drying very uniformity and completely.
-
According the product of the drying temperature required to
decide,the machine temperature can up to 500℃，normal operating
temperature is 70~200℃.
-
The barrel(drum) revolution motor to use real explore-proof
motor,high security.
|
Model |
HY-RBD30 |
|
Capacity per times (kg/time) |
30 |
|
Heating capacity (kW) |
21.6 |
|
Total power (kW) |
22.5 |
|
Heating temperature (highest) ˚C |
200 |
|
Heating time min |
15 |
|
Pressure of Air (kg/cm2) |
5~7 |
|
Machine Measurement W×L×H (m) |
1.62
x 0.9x2.15 |
|
Machine Weight (kg) |
1000 |
|
|
