Washer large and small type of seal iron shell.
Features：
-
Drug liquid adhesive uniformity dryer very quickly and
completely.
-
The operation adopted automatic/head control model ofr easy
operate.
-
Adopt the air-drive diaphragm pump for drug liquid supply.
-
Adopt the inverter control speed of the roller. Can be changed
at any time.
-
One worker can handle several machines at the same time. Arise
worker is efficiency and capacity.

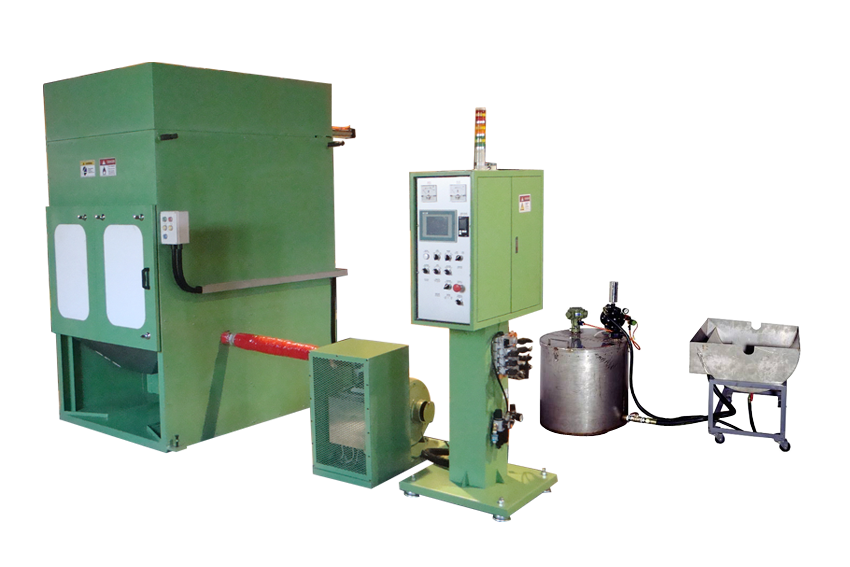

The difference with
the standard dipping machine :
the electric
control box and electric heating box are far away from the
machine to reduce the risk of static electricity.
|
Model |
HY-SAAD30-DRAW VIEW |
HY-SAAD50-DRAW VIEW |
|
Capacity per times (kg/time) |
30 |
50 |
|
Heating capacity (kW) |
7.2 |
7 |
|
Total power (kW) |
8 |
8 |
|
Pressure of Air (kg/cm2) |
5~7 |
5~7 |
|
Machine Measurement W×L×H (m) |
1.35
x 2.08 x 2.55 |
1.97
x 2.08x 2.25 |
|
Installation footfloor area W×L×H (m) |
4.27 x 2.83 x 2.55
|
4.9 x 2.83 x 2.55 |
|
Machine Weight (kg) |
2500 |
2800 |

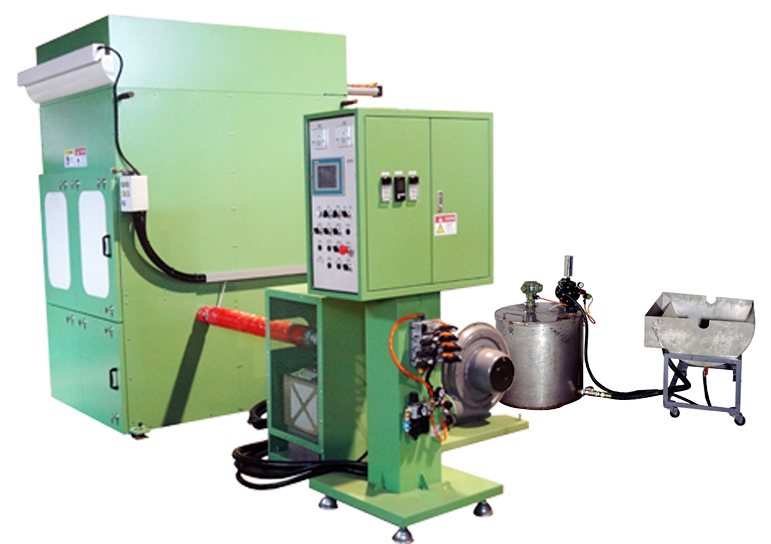

Large air flow
Feature : Enhance drying capacity
|
Model |
HY-SAAD30-EX |
HY-SAAD50-EX |
|
Capacity per times (kg/time) |
30 |
50 |
|
Heating capacity (kW) |
14.4 |
14.4 |
|
Total power (kW) |
17.5 |
17.5 |
|
Pressure of Air (kg/cm2) |
5~7 |
5~7 |
|
Machine Measurement W×L×H (m) |
1.35
x 2.08 x 2.55 |
1.65
x 2.08x 2.25 |
|
Installation footfloor area W×L×H (m) |
4.32 x 2.83 x 2.55
|
4.62 x 2.83 x 2.55 |
|
Machine Weight (kg) |
2600 |
2900 |
|
