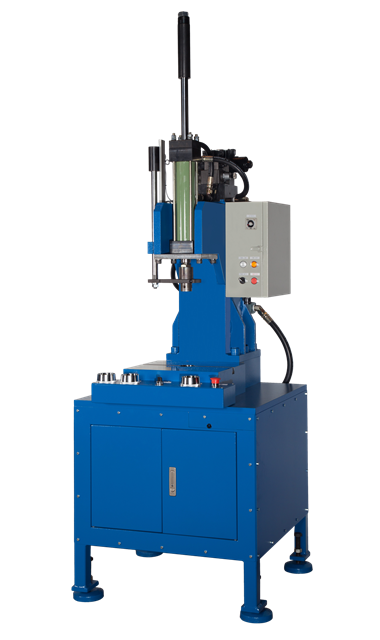

C-type High Speed Hydraulic Press

Four-column High Speed Hydraulic Press

Designed for the letter punching, pressing and trimming of parts.

Type	HY-3TC	HY-3TC-DS	HY-5TC	HY-10TC
Capacity (TON)	3	3	5	10
Table size (mm)	360 x 400	360 x 400	450 x 500	460 x 500
Max Opening Height (mm)	310	310	360	560
Stroke (mm)	250	250	300	350
Motor HP	5	3	5	5
Slow speed adjust device of pressing	YES	YES	YES	YES
Machine Size W x L x H (m)	0.75 x 0.75x x1.84	1.04 x 0.82 x 2.34	0.8 x 1.1 x 2.1	0.85 x 1.31 x 2.42
Machine Weight (kg)	700	900	1000	1500

If you need special specifications, please call us.
